BricsCAD Lite


Powerful 2D CAD for Streamlined Drafting


Professional DWG-based 2D CAD with AI‐driven productivity tools.

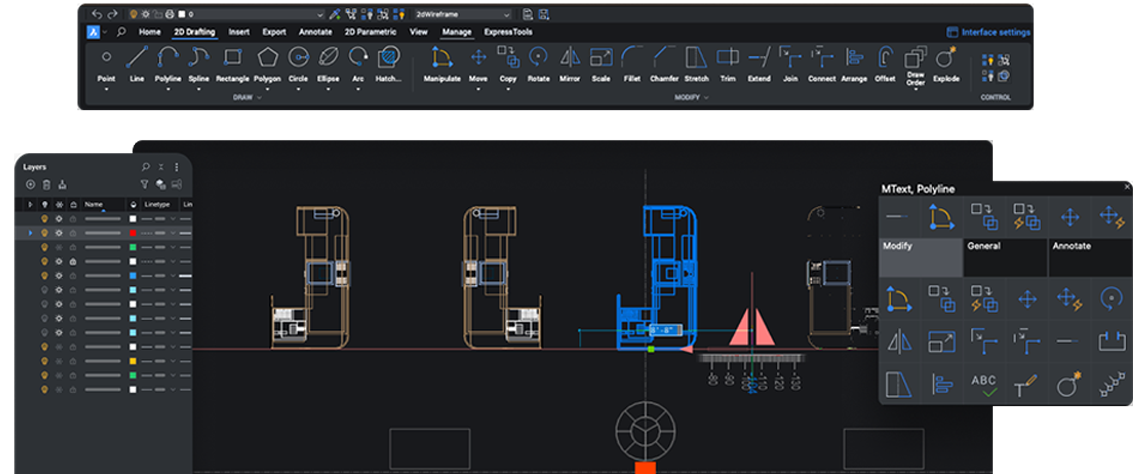

Familiar & Compatible CAD

BricsCAD is built entirely on the industry standard DWG format, with full command, script, macro and menu compatibility. BricsCAD feels like home!

BricsCAD Lite is highly compatible with AutoCAD® LT 2022

There’s no need to change your printers, templates, blocks or sheet set layouts to move to BricsCAD – they are fully compatible. Command names, aliases, and system variables are the same in BricsCAD and AutoCAD®. BricsCAD is based on native DWG for the highest compatibility with other CAD users across all industries.

  • Command compatible
  • Menu (.CUI, .CUIX) compatible
  • Macro/script compatible
  • Support file (.PC3, .LIN, .PAT, .DWT, .SSM) compatible
  • Based on 2018 DWG technology

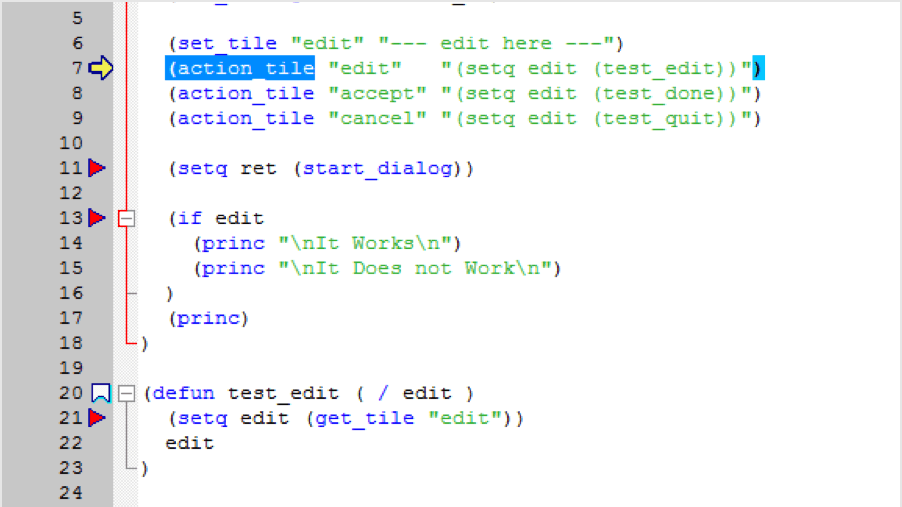

AutoLISP Support

BricsCAD Lite fully supports LISP, and is compatible with AutoCAD®’s AutoLISP format, making it simple to reuse existing routines. Our advanced BLADE LISP environment allows you to quickly develop customizations that can slash the time it takes for repetitive drafting tasks.

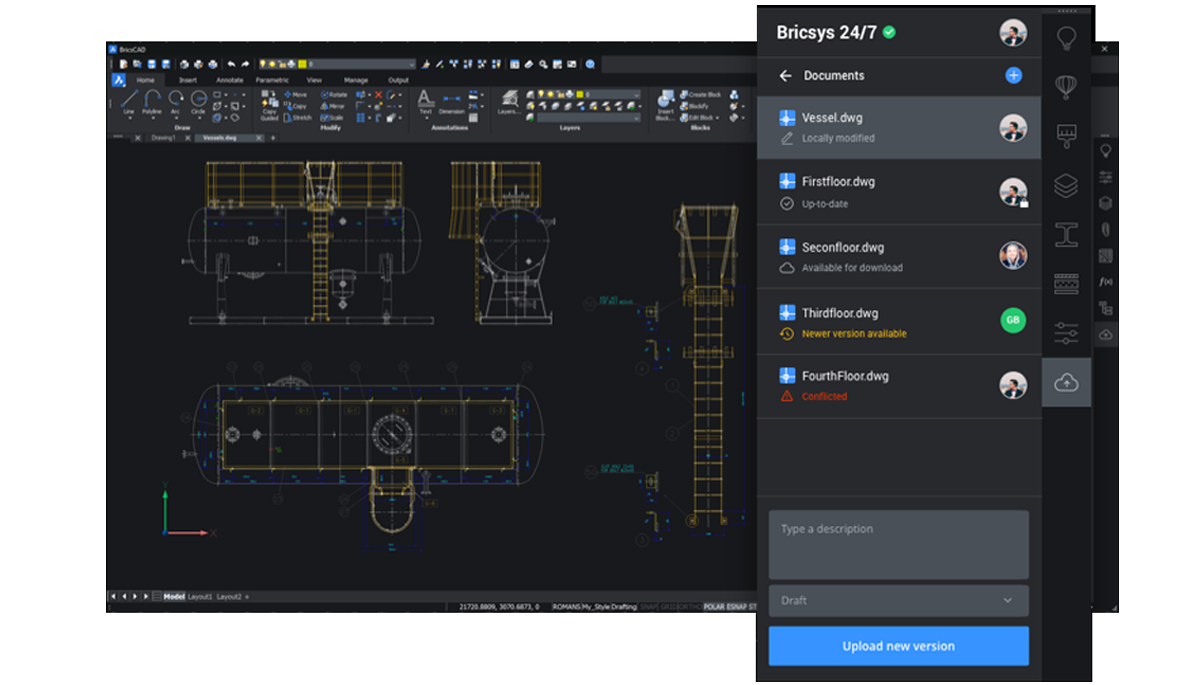

Intelligent and Efficient 2D CAD

BricsCAD offers unique tools to help you get more work done faster. Many of them are powered by advanced machine learning technologies to accelerate tasks that can take hours or more via manual methods.

Greater control over all drawing elements with Drawing Explorer

BricsCAD's Drawing Explorer centralizes what often amounts to many separate dialog boxes in other CAD platforms. Easy to navigate, easy to search.

feature-icon-linetypes
Linetypes
feature-icon-layer-management
Layer management
feature-icon-ucs-control
UCS control
feature-icon-xrefs
External references
feature-icon-blocks
Blocks
feature-icon-images
Images
feature-icon-section-planes
Section planes

+ much more...

Convert repeated geometry to Block Definitions

BLOCKIFY automatically creates a block definition and replaces all matching sets of entities with block references throughout your entire drawing. You can reduce DWG file size up to 90% by using Blockify to find repetitive geometry and converting it into block references.

The Quad: drawing, editing, and information near the cursor

BricsCAD’s unique Quad is a “head-up” command palette that predicts your command usage and offers one-click access to the command you’ll likely need next. Powered by machine learning, the Quad predicts the commands you will need, based on the unique way you use BricsCAD.

Automatically align copied entities

COPYGUIDED automatically aligns copied entities to relevant geometry using automatically generated guide curves. You can explicitly select entities to use as guide curves or let BricsCAD determine them based on the drawing elements in your selection.

Parametric Blocks: a dynamic approach to creating 2D Blocks

Parametric blocks automate repetitive tasks by allowing users to create one block instead of lots of similar, separate block definitions. You can create 2D block definitions using the same set of tools and workflows that you are familiar with.

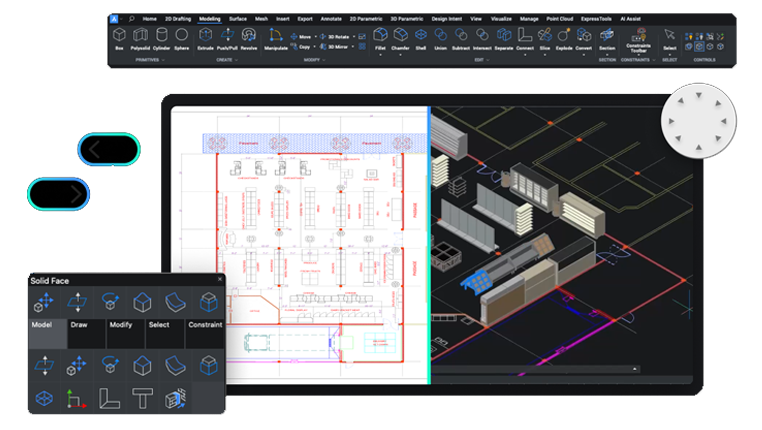

Adaptive grid snapping

BricsCAD’s dynamic snap grid changes to reflect your zoom level. The adaptive grid snap feature lets you create, edit, nudge and manipulate entities using precise values without the need for keyboard entry. The snap step size adapts based on the current screen zoom factor.

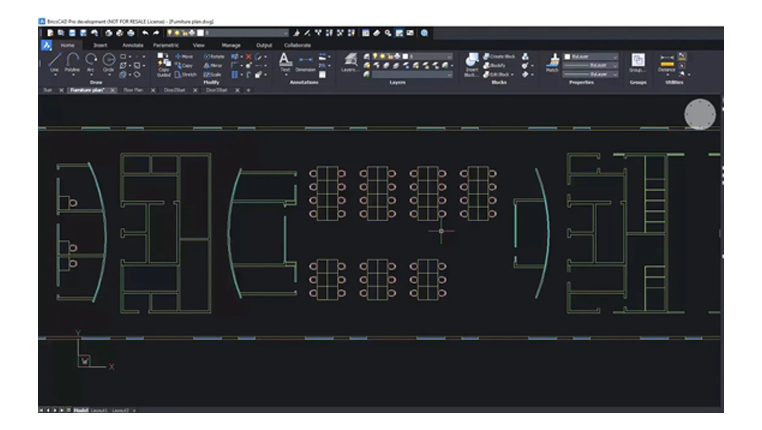

Dynamic UCS: The power of the Shift key

With BricsCAD's Dynamic UCS, the coordinate system is aligned automatically with the entity under your cursor. Tap the shift key to unlock the UCS, allowing you to start drawing outside of the selected entity or face. 2D users can increase their drawing productivity further, by automatically aligning the UCS with selected entities for both 2D and 3D.

Autoconstrain 2D drawing elements

When creating parametric 2D drawing elements, BricsCAD enables you to intelligently and automatically apply parameters and constraints with just one click, applying geometric control quickly and easily for fast design changes and reuse.

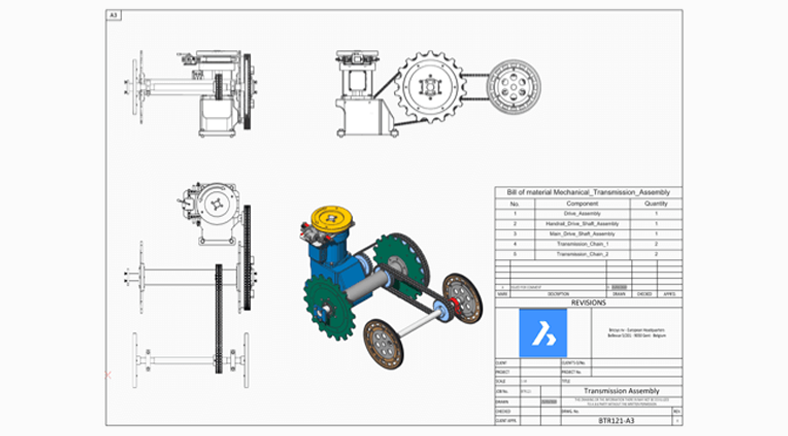

Optimize drawing quality

OPTIMIZE corrects your drawing issues by automatically finding and healing inconsistancies such as gaps and misalignments which may otherwise be difficult to see, improving drawing accuracy and giving you a cleaner, more efficient result.

Manipulator

The Manipulator is a versatile tool that lets you move, rotate, scale and mirror selected entities. If you hold down the Control key when starting an action, the Manipulator will keep the original entities, automatically creating copies of them. The Manipulator can act on single or multiple entities at once.

High performance CAD

CAD should feel smooth and seamless, no matter how many millions of lines are in the file.

timer-2-7
2.7x faster

Opening 500+ DWG files

Source: CadTempo and BricsCAD Performance



timer-2-7
2.8x faster

Running advanced LISP routine

Source: BricsCAD's LISP kicks sand in the face of AutoCAD's

Bitmap Take real advantage of multi-core CPU's

BricsCAD supports multi-threaded, multi-processor operations to accelerate product performance for file loads, drawing generation and rendering.

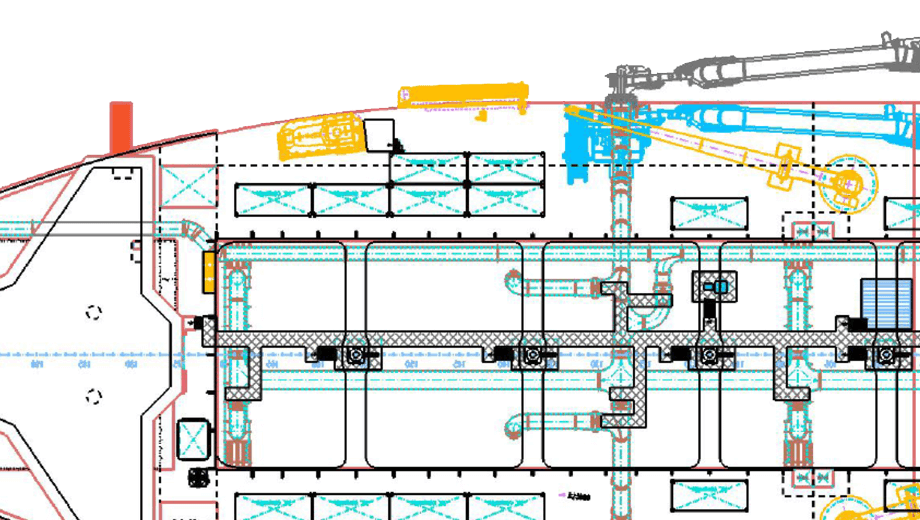

High performance graphics engine

In each new version of BricsCAD, we strive to improve display performance. Enjoy smooth zoom and pan operations in drawings containing hundreds of thousands of entities.

PDF and Big TIFF underlays

We use a multi-resolution, persistent image cache to display PDF underlays, enabling super-fast zoom and pan operations. And BricsCAD’s raster engine delivers great pan and zoom performance, even with enormous 64-bit BigTIFF files.
